Kubernetes Homelab Part 1 - Hardware & Configuration

This article will go into extensive detail about the hardware powering my kubernetes homelab and the configuration of the individual clusters. All the code is available on my public Git Repository.

ksefuke-labs/kubernetes-homelab

Highly Available Datacenter at Home

null

1

0

Hardware

#

All the hardware that make up my homelab in some shape or fashion

Einherjar | Arch Linux Powered Local Desktop

#

Einherjar - “Warriors who die in combat every day in Valhalla and are resurrected each evening to feast, repeating this cycle endlessly until Ragnarök”. Symbolises the ephemeral nature of my desktop PC consistently being rebuilt. This is my local Linux desktop which i built partly for local development.

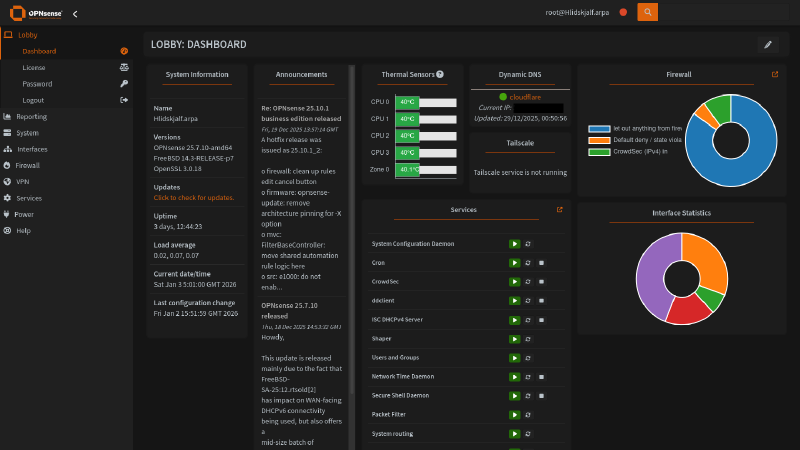

Hlidskjalf | Enterprise OPNsense Firewall Router

#

Hlidskjalf is “Odin’s high seat from which he surveys all worlds”. OPNsense powers my home network alongside my mikrotik switch. It is responsible for managing NTP, VLANS, DNS, DHCP, IDS/IPS and much more). All devices on my home network must communicate with it to access the outside world.

Huginn & Muninn | Lower Power NUCs

#

Huginn and Muninn are Odin’s two ravens, his ever watchful eyes. Huginn translates to “Thought” and Muninn translates to “Mind”. These are two Mini PC’s purchased back in june 2025 with the intent of deploying kubernetes on them. The Intel 12th Gen Celeron N100 CPU is incredibly power efficient, idling at 6w and maxing out at 25w.

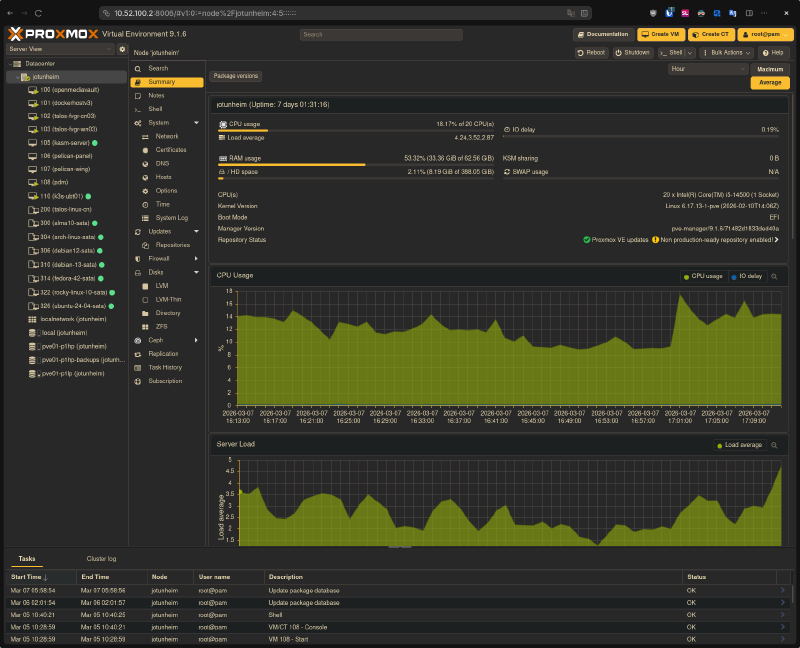

Jotunheim | All in One Proxmox Homelab

#

Jotunheim refers to the “realm of the giants”. This is my existing all in one homelab featuring a virtualized NAS, Docker VMs and other self host services. More information on it’s development, evolution and deployment can be found here)

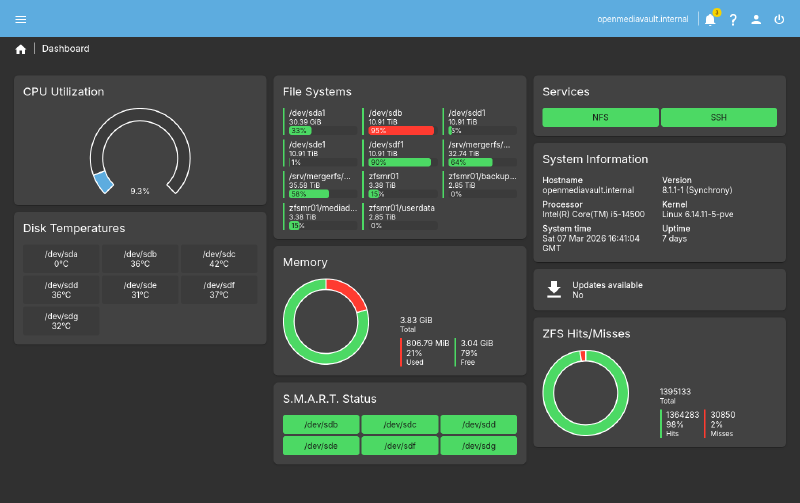

Openmediavault | Virtualized Linux NAS

#

Virtualized NAS is deployed on Jotunheim. It is runnng Openmediavault a next generation NAS solution based on Debian Linux, it supports services like SSH, FTP, SMB, NFS and much more.

Storage drives above are connected to a HBA SAS pcie card (Flashed to IT Mode ) on Jotunheim which is passed through to the virtual machine via PCIE Passthrough. Emulating a bare metal NAS environment and providing native performance.

The SSDs are configured as a ZFS Mirror, the HDDs are formatted in XFS and pooled together via mergerfs. The NAS will function as a backup target for kubernetes workload resources and potential as NFS storage.

Repo Structure

#

Flux CD is my GitOps deployment toolkit of choice. For simplicity I will be going for a monorepo approach, where you store all your Kubernetes manifests in a single Git repository. The various environments specific configs are all stored in the same branch.

Each cluster state is defined in a dedicated directory e.g. clusters/production where the specific apps and infrastructure overlays are referenced. The separation between apps and infrastructure makes it possible to define the order in which a cluster is reconciled, e.g. first the cluster addons and other Kubernetes controllers, then the applications.

├── apps
│   ├── base
│   ├── production
│   └── staging
├── infrastructure
│   ├── base
│   ├── production
│   └── staging
└── clusters
    ├── production
    └── staging

Development Cluster | Rancher Desktop by SUSE

#

Rancher Desktop is an open-source application that provides all the essentials to work with containers and Kubernetes on the desktop, in addition to providing a GUI and shipping with K3s and it’s accompanying defaults (Traefik ingress controller, Flannel CNI, containerd and CoreDNS.)

Instead of deploying this in virtual machine on my proxmox host, i decided to deploy on it my local desktop Einherjar. It was initially deployed to learn kubernetes via applying manifest manually. But is now used to test docker and kubernetes applications/services of interest

Configuration

#

Official documentation doesn’t include instructions for arch linux, so i followed the Installation documentation for setup requirements and adapted them to arch:
Check if user has required permissions for /dev/kvm:

[ -r /dev/kvm ] && [ -w /dev/kvm ] || echo 'insufficient privileges'

Command below adds current user to the “KVM” group:

sudo usermod -a -G kvm "$USER"

Rancher Desktop makes use of Traefik as the default ingress controller. Users may run into a permission denied error after deploying Rancher Desktop due to restricted port access on the Traefik ingress.

Most Linux distributions do not allow non-root users to listen on TCP and UDP ports below 1024. In order to allow Traefik to listen to privileged ports on the local host

Adapted persistent config of sudo sysctl -w net.ipv4.ip_unprivileged_port_start=80 to work with arch linux.
Arch has /etc/sysctl.d/ directory instead of a /etc/sysctl.conf file, created the file below in that directory.

sudo sh -c 'echo "net.ipv4.ip_unprivileged_port_start=80" >> /etc/sysctl.d/99-rancher-desktop.conf'

Save and apply

sudo sysctl --system

Installed rancher desktop and kubectl using paru:

paru -S rancher-desktop-bin kubectl

Staging Cluster | K3s by Rancher Labs & SUSE

#

My Staging Cluster is powered by K3s, a lightweight kubernetes distribution designed with resource constrained IoT & Edge Computing in mind. It ships all required components for a kubernetes cluster. It is deployed as a single-node Ubuntu 24.04 LTS Cloud-Init VM (4 Cores, 8GB RAM) on Jotunheim and managed by GitOps via FluxCD

• Listens to: cluster/staging, apps/staging and infrastructure/staging.
• Rollback via Proxmox VM snapshots
• Less Painful to break

Configuration

#

K3s is installed without the default helm chart and traefik ingress controller, I will be using the helm and traefik controller deployed and managed by Flux CD instead.

curl -sfL https://get.k3s.io | INSTALL_K3S_EXEC="--disable=helm-controller --disable=traefik" sh
sudo systemctl status k3s.service

Copied K3S.yaml file to .kube/config on my local machine via scp and amended IP to match the remote server

scp echo@10.52.100.20:/home/echo/k3s.yaml .
mv k3s.yaml ./kube/config

Confirmed kubectl loaded correctly and merged the remote K3S context file with my local rancher desktop one.

flux bootstrap github \
  --token-auth \
  --owner=ksefuke-labs \
  --repository=kubernetes-homelab \
  --branch=main \
  --path=clusters/staging \
  --personal

Production Cluster | Talos Linux by Sidero Labs

#

Talos Linux powers my production cluster alongside FluxCD. It is a secure, immutable and minimalist operating system dealing exclusively for kubernetes:

• No management of underlying OS is required unlike standard deployment on Ubuntu or other distribution.
• It’s configuration is entirely declarative, allowing you to define a reproducible desired state via a single YAML file.
• It is entirely API managed, no ssh or config management tools required
• Simple upgrades and fast deployments with rollback support
• Flux CD will be deployed to point to: clusters/production, apps/productionandinfrastructure/production. Once infrastructure deployment on staging is complete.

Cluster Layout

#

After some initial testing i decided to deploy a Talos Linux Cluster with 3 Control Plane nodes and Worker Nodes, with 1 of each deployed type across Jotunheim, Huginn and Muninn PVE servers for High Availability. This allows the cluster to tolerate 1 Control Plane Node going down, in addition to PVE allowing to tear down, rebuild and scale up the cluster without reinstalling the core OS.

Cluster Name - Folkvangr (FVGR) the realm of the Goddess Freya, where half of those who die are received. Translates as “field of the host”.

Control Plane Nodes

By Default Talos Linux taints control planes nodes so that workloads are not schedulable on them. They will only used to run control plane components.

Worker Nodes

The plan is to optimise workloads to run Huginn and Muninn worker nodes and have workloads which require more “horsepower” pinned to the worker node of Jotunheim

ISO Config

#

First step is to get a Talos Linux image from image factory

• Bare-metal Machine
• Talos Linux Verstion v1.12.4
• amd64 (No Secure Boot)
• Bootloader: auto
• systemExtensions for Intel CPUs, iGPUs and Longhorn Utilities (more on that later)

customization:
    systemExtensions:
        officialExtensions:
            - siderolabs/i915 # Needed for Intel iGPUs
            - siderolabs/intel-ucode # Needed for Intel CPUs (PVE CPU Type is host)
            - siderolabs/iscsi-tools # Needed for Longhorn
            - siderolabs/qemu-guest-agent # Needed for Quest guest agent to work
            - siderolabs/util-linux-tools # Needed for Longhorn

Configuration

#

Installed talosctl locally using pacman

sudo pacman -S talosctl

Exported variable exports for automating commands later

export CONTROL_PLANE_IP=("10.52.100.50" "10.52.100.51" "10.52.100.52")
export WORKER_IP=("10.52.100.55" "10.52.100.56" "10.52.100.57")
export YOUR_ENDPOINT=k8s.folkvangr.internal
export CLUSTER_NAME=Folkvangr

Generate the secrets bundle, which is a file that contains all the cryptographic keys, certificates, and tokens needed to secure a Talos Linux cluster.

talosctl gen secrets -o secrets.yaml

Generate machine configuration using secrets bundle above

talosctl gen config --with-secrets secrets.yaml $CLUSTER_NAME https://$YOUR_ENDPOINT:6443

Apply machine configs for control plane and worker node if applicable

 for ip in "${CONTROL_PLANE_IP[@]}"; do
  echo "=== Applying configuration to node $ip ==="
  talosctl apply-config --insecure \
    --nodes $ip \
    --file controlplane.yaml
  echo "Configuration applied to $ip"
  echo ""
done

 for ip in "${WORKER_IP[@]}"; do
  echo "=== Applying configuration to node $ip ==="
  talosctl apply-config --insecure \
    --nodes $ip \
    --file worker.yaml
  echo "Configuration applied to $ip"
  echo ""
done

Merged talosconfig into the default configuration file located at ~/.talos/config:

talosctl config merge ./talosconfig

Set endpoints of your control plane nodes

talosctl config endpoint $CONTROL_PLANE_IP

Bootstrap the cluster

talosctl bootstrap --nodes 10.52.100.50

Merged new cluster into local kubeconfig

talosctl kubeconfig --nodes 10.52.100.50

discovered nodes: ["10.52.100.55" "10.52.100.56" "10.52.100.57" "10.52.100.50" "10.52.100.51" "10.52.100.52"]
waiting for etcd to be healthy: ...
waiting for etcd to be healthy: OK
waiting for etcd members to be consistent across nodes: ...
waiting for etcd members to be consistent across nodes: OK
waiting for etcd members to be control plane nodes: ...
waiting for etcd members to be control plane nodes: OK
waiting for apid to be ready: ...
waiting for apid to be ready: OK
waiting for all nodes memory sizes: ...
waiting for all nodes memory sizes: OK
waiting for all nodes disk sizes: ...
waiting for all nodes disk sizes: OK
waiting for no diagnostics: ...
waiting for no diagnostics: OK
waiting for kubelet to be healthy: ...
waiting for kubelet to be healthy: OK
waiting for all nodes to finish boot sequence: ...
waiting for all nodes to finish boot sequence: OK
waiting for all k8s nodes to report: ...
waiting for all k8s nodes to report: OK
waiting for all control plane static pods to be running: ...
waiting for all control plane static pods to be running: OK
waiting for all control plane components to be ready: ...
waiting for all control plane components to be ready: OK
waiting for all k8s nodes to report ready: ...
waiting for all k8s nodes to report ready: OK
waiting for kube-proxy to report ready: ...
waiting for kube-proxy to report ready: OK
waiting for coredns to report ready: ...
waiting for coredns to report ready: OK
waiting for all k8s nodes to report schedulable: ...
waiting for all k8s nodes to report schedulable: OK

Output of kubectl get nodes

NAME              STATUS   ROLES           AGE     VERSION
talos-fvgr-cn01   Ready    control-plane   8m13s   v1.35.0
talos-fvgr-cn02   Ready    control-plane   8m23s   v1.35.0
talos-fvgr-cn03   Ready    control-plane   8m6s    v1.35.0
talos-fvgr-wn01   Ready    <none>          8m9s    v1.35.0
talos-fvgr-wn02   Ready    <none>          8m23s   v1.35.0
talos-fvgr-wn03   Ready    <none>          8m21s   v1.35.0

Flux CD Bootstrap to clusters/production , not done yet. Will be bootstrapped when core infrastructure has been deployed and tested on Staging first.

flux bootstrap github \
  --token-auth \
  --owner=ksefuke-labs \
  --repository=kubernetes-homelab \
  --branch=main \
  --path=clusters/production \
  --personal

Control Plane Load Balancer

#

Before installation, a load balancer needs to be deployed for Clusters with more than one control plane node so the Kubernetes API server endpoint can reach all control plane nodes, providing true high availability.

The could be as simple as setting up Host Override for each control plane node in Unbound DNS on Hlidskjalf like below:

k8s.folkvangr.internal  IN  A  10.52.100.50
k8s.folkvangr.internal  IN  A  10.52.100.51
k8s.folkvangr.internal  IN  A  10.52.100.52

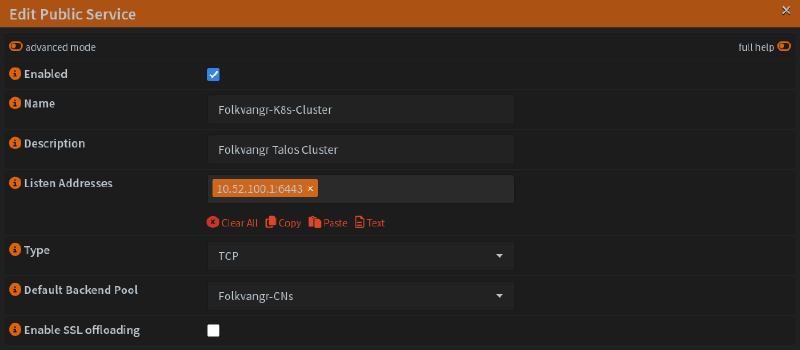

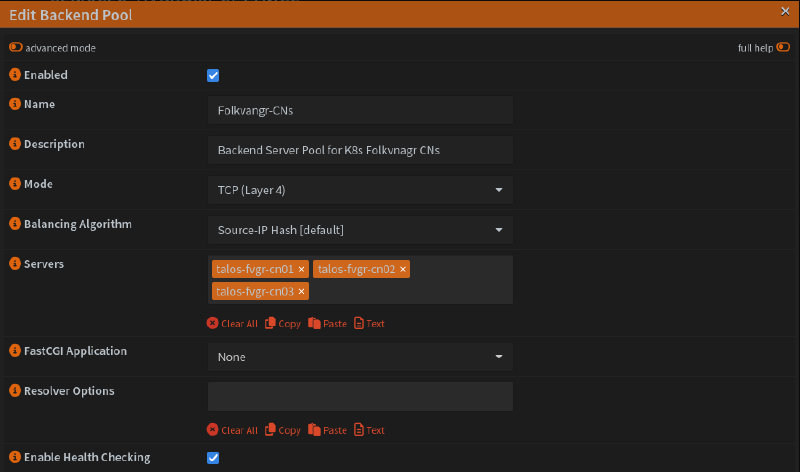

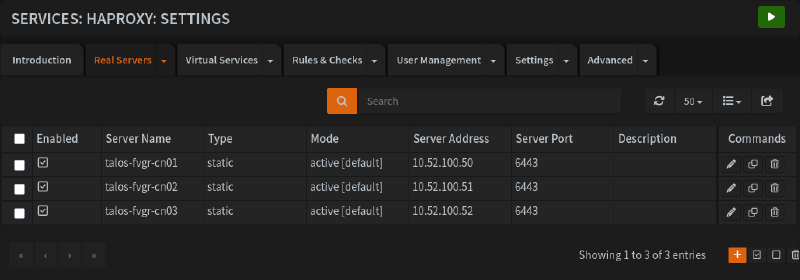

But that’s not how we were roll around these parts. So instead I installed HAproxy Plugin on Hlidskjalf, created a virtual IP point to 10.52.100.1. Added the Control Plane Nodes to a backend server pool and mapped the virtual IP as the Public Service listening address 10.52.100.1:6443. In addition to this I also created a host override for k8s.folkvangr.internal pointing to 10.52.100.1 so the Talos endpoint export could resolve correctly.

Output of curl -k https://k8s.folkvangr.internal:6443 after cluster is deployed.

{
  "kind": "Status",
  "apiVersion": "v1",
  "metadata": {},
  "status": "Failure",
  "message": "Unauthorized",
  "reason": "Unauthorized",
  "code": 401
}

Todo List

#

• Configuring PCIE passthrough on Huginn and Muninn PVE servers
• IGPU passthrough and detection for Production Cluster Worker Nodes
• Backup tool for control plane nodes
• Complete testing of base infrastructure on staging cluster
